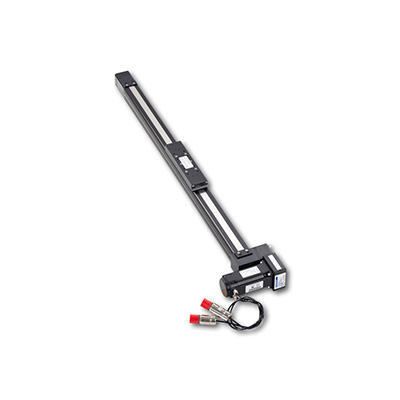

T22x, T31x科爾摩根混合步進電機（推薦使用P7000驅動器）
R2A-AKM23C、23D科爾摩根無刷AKM伺服電機
NEMA 23、NEMA 34定制電機底座
特點
軸承外殼：類型380鋁壓鑄件，環氧樹脂涂層滑動托架總成：6063-T6陽極氧化鋁硬化外殼
梯形絲杠：直徑為0.625"的合金鋼絲杠；青銅螺母
帶式驅動器：0.5"寬的聚氨酯以及鋼筋
導向罩：6063-T6陽極氧化鋁硬化外殼，聚四氟乙烯浸漬
螺旋齒輪：合金鋼，表面硬化
滾珠絲杠：直徑為0.625"的硬化合金鋼絲杠；合金鋼，熱處理滾珠螺母
可選配件
標準或定制長度至.1 inches英制或公制滑動托架底座
電機或絲杠制動器
定位傳感器
單滑動托架或雙滑動托架
皮帶式或螺旋式齒輪，并聯或串聯直接傳動
防水保護
|
MECHANICAL SPECIFICATIONS |
Ball Screw |
Lead Screw |
Belt |
|
Max. Stroke Length, mm (in) |
1830 (72) |
||
|
Profile, mm (in) |
51 x 51 (2 x 2) |
||
|
Guide Type |
Roller Guides |
||
|
Screw Leads (in/rev) |
0.5, 0.2 |
0.2, 0.125 |
|
|
Screw Diameter (in/rev) |
0.625 |
0.625 |
|
|
Bearing |
4-Gothic arch raceway on dual precision rails |
||
|
PERFORMANCE SPECIFICATIONS |
Travel life standard: 25.4 km (1,000,000 in) |
||
|
Max. Thrust Force, N (lbf) |
450 (100) |
320 (72) |
|
|
Max. Velocity, mm/s (in/s) |
760 (30) |
2000 (80) |
|
|
Max. Carriage Load: |
|
||
|
Normal, N (lb) |
22 (5) |
||
|
Roll Moment, N-m (lb-in) |
5.6 (50) |
||
|
Pitch Moment, N-m (lb-in) |
11.3 (100) |
||
|
Repeatability, mm (in) |
+/-0.025 (0.001) |
+/-0.25 (0.010) |
|
|
Max Duty Cycle (%) |
100 |
60 |
100 |
|
Limit Sensors |
Optional |
Optional |
Optional |
|
Std. Operating Temp Range, °C (°F) |
-28 to +60 (-20 to +140) |
||
|
Environment |
IP 44 rated: Splash-proof, protected against ingress of solid particles greater than 0.040diameter. |
||
