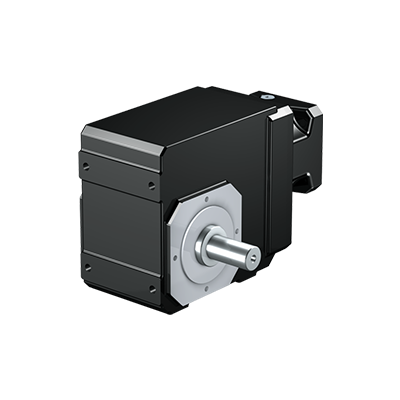

- Solid shaft with key
- Solid shaft without key (K1 - K4, starting at K5 on request)
- Solid shaft on both sides
- Hollow shaft with keyway
- Hollow shaft with shrink ring
Housing Designs
- Pitch circle diameter
- Round flange
- Foot + pitch circle diameter
- Foot + round flange
- Pitch circle diameter + torque arm bracket
- Foot + pitch circle diameter + torque arm bracket
Backlash
- Standard
- Class II
- Class I
Mounting Positions
- Any mounting position.
- You can find the explanation of the mounting positions and the respective quantities of lubricant in the document
Lubricants and Maintenance
- Mineral lubricant CLP ISO VG 220
- Option: Synthetic lubricant CLP HC ISO VG 220
Under normal operating conditions no lubricant change is required for gear unit size K1 to K4 (lubricated for life).
We recommend a change of lubricant for gear unit size K5 to K10 after approx. 10,000 hours of operation.
Paint Finish
Black RAL 9005
Motor Adapter ME
- Universal motor mounting system for almost all synchronous servo motors.
- Option large (MEL) for large motors.
- Fast and secure motor mounting.
- Robust, balanced coupling.
- Thermal length compensation.
- Low mass inertia.
Option ServoStop
- Integrated in the motor adapter, electrically released spring-loaded brake.
- When the power is removed, in the event of a power failure or an emergency stop ServoStop will brake both drive and machine shaft safely and reliably.
- Zero-backlash plug-in coupling.
Recommendation Motor
EZ synchronous servo motors
For further information see Synchronous Servo Motors
|
Type |
Ratio |
Max. perm. acceleration torque [Nm] |
Max. perm. input speed in cyclic operation [1/min] |
Backlash [arcmin] |
Torsional stiffness [Nm/arcmin] |
|
K102 |
4 – 70 |
60 – 135 |
4500 – 6000 |
6 – 12 |
5.9 – 6.8 |
|
K202 |
4 – 69 |
72 – 220 |
4000 – 5500 |
1.5 – 10 |
8.7 – 11 |
|
K203 |
39 – 272 |
159 – 217 |
5500 |
2.5 – 10 |
11 |
|
K302 |
4 – 69 |
134 – 385 |
3800 – 5000 |
1.5 – 10 |
14 – 16 |
|
K303 |
33 – 272 |
246 – 379 |
5000 |
2.5 – 10 |
16 |
|
K402 |
4 – 69 |
225 – 600 |
3500 – 5000 |
1.5 – 10 |
27 – 31 |
|
K403 |
32 – 272 |
341 – 591 |
5000 |
2.5 – 10 |
31 |
|
K513 |
7.3 – 97 |
479 – 1000 |
3000 – 4500 |
2 – 10 |
46 – 50 |
|
K514 |
85 – 374 |
827 – 1000 |
4500 |
3 – 10 |
49 – 50 |
|
K613 |
7.3 – 95 |
554 – 1600 |
2900 – 4000 |
2 – 10 |
74 – 82 |
|
K614 |
111 – 369 |
1165 – 1600 |
4000 |
3 – 10 |
82 – 83 |
|
K713 |
7.6 – 99 |
892 – 2600 |
2700 – 3800 |
2 – 10 |
117 – 126 |
|
K714 |
89 – 381 |
1626 – 2600 |
3800 |
3 – 10 |
125 – 126 |
|
K813 |
7.4 – 97 |
1312 – 4650 |
2600 – 3600 |
2 – 10 |
178 – 196 |
|
K814 |
67 – 311 |
3551 – 4650 |
3500 – 3600 |
3 – 10 |
196 |
|
K913 |
13 – 95 |
2274 – 7700 |
2800 – 3400 |
5 – 10 |
354 – 379 |
|
K914 |
92 – 374 |
2907 – 7700 |
3400 |
5 – 10 |
378 – 379 |
|
K1013 |
39 – 94 |
7332 – 13200 |
3000 |
5 – 10 |
722 – 724 |
|
K1014 |
93 – 290 |
10624 – 13200 |
3000 – 3200 |
5 – 10 |
724 – 725 |
