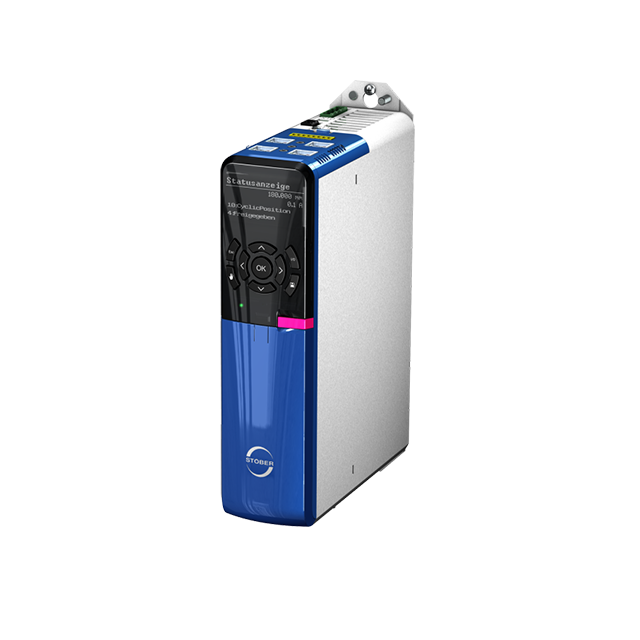

SD Series
High performance and flexibility. Perfect precision control of servo axes equipped with encoders digital (optional on EZ synchronous servo geared motors). Allows about 33 million positions per revolution to be determined. Best control performance with 32-bit Dual-Core processor STO non-wearing electronic safety function (developed jointly with Pilz GmbH & Co. KG).
- 產品簡介
- 產品特點
- 產品規格
- 產品尺寸
- 資料下載
High performance and flexibility. Perfect precision control of servo axes equipped with encoders digital (optional on EZ synchronous servo geared motors). Allows about 33 million positions per revolution to be determined. Best control performance with 32-bit Dual-Core processor STO non-wearing electronic safety function (developed jointly with Pilz GmbH & Co. KG).
| Type | Size | Nominal output current (4 kHz) [A] | Max. output current (4 kHz) [A] | Nominal output current (8 kHz) [A] | Max. output current (8 kHz) [A] | Dimensions [mm] |
|---|---|---|---|---|---|---|
| SD6A02 | 0 | 4 | 7,2 | 3 | 7,5 | 300 x 70 x 194 |
| SD6A04 | 0 | 2,3 | 4,2 | 1,7 | 4,3 | 300 x 70 x 194 |
| SD6A06 | 0 | 4,5 | 8,1 | 3,4 | 8,5 | 300 x 70 x 194 |
| SD6A14 | 1 | 10 | 18 | 6 | 15 | 300 x 70 x 284 |
| SD6A16 | 1 | 16 | 28,8 | 10 | 25 | 300 x 70 x 284 |
| SD6A24 | 2 | 22 | 39,6 | 14 | 35 | 300 x 105 x 284 |
| SD6A26 | 2 | 32 | 57,6 | 20 | 50 | 300 x 105 x 284 |
| SD6A34 | 3 | 44 | 79,2 | 30 | 75 | 382,5 x 190 x 303 |
| SD6A36 | 3 | 70 | 126 | 50 | 125 | 382,5 x 190 x 303 |
| SD6A38 | 3 | 85 | 153 | 60 | 150 | 382,5 x 190 x 303 |
